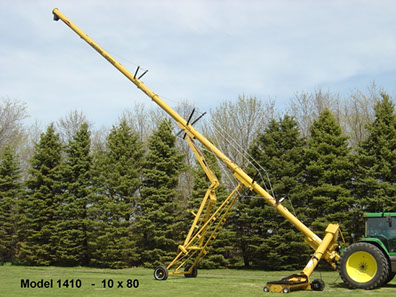

1400 SERIES PORTABLE AUGERS
Engineered to provide one of the most reliable, versatile, quality-built grain handling system in the industry. Designed to move high volumes of grain quickly and easily. Two models available in 8" & 10"; the 1405 (without hanger bearings) and the 1410 (with hanger bearings) in 60' & 70' lengths. 13" models come standard as 1410, in 60', 70' & 80' lengths.
All 1400 Series augers have the following features:
» Double tapered bearing intake
» Hydraulic scissors lift
» Hex Shaft
» Powder coat painted
» Hanger bearing access doors every 10'
» 30° flexible rubber down spout
» Single constant velocity joint on main drive shaft (8" & 10" models)
» Adjustable Axle Width
» Adjustable Self Leveling Hitch
» Superb truss construction
» Lower end clean-out door
» Double constant velocity joint in hopper
» Low profile self leveling swing-away hopper
» Reinforced angle ring tube connections
All 1410 13" augers have the following additional standard features:
» Adjustable Hitch
» Double reinforced angle rings
» Ultra low profile dual flighting in flex hopper
» Double constant velocity joint on main drive shaft
» Hanger bearings
SOLD
Specifications
AUGER SIZE
8"
10"
13"
TUBE
12 gauge
12 gauge
12 gauge
FLIGHTING THICKNESS
3/16"
1/4"
1/4"
CAPACITY (BUSHELS PER HOUR)
1,800-3,800*
3,800-5,000*
7,000-10,000*
RPM
400-500
400-500
400-500
*Based on dry grain
Tractor Hydraulic Hoist
AUGER SIZE
PSI
8"
1200
10"
1200
13"
1500
Tractor Hydraulic Drive For Swing Hopper
AUGER SIZE
PSI
8"
1500 @ 10 GPM
10"
1500 @ 10 GPM
13"
2250 @ 22 GPM
AUGER ANGLE
10° (transport)
30°
40° (fully raised)
10° (transport)
30°
40° (fully raised)
10° (transport)
30°
40° (fully raised)

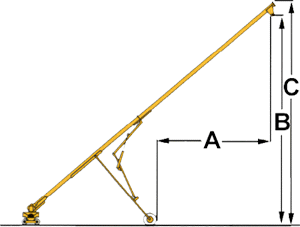

A
25'
23'
24'
31'
28'6"
26'6"
40'5"
36'7"
35'
AUGER LENGTH
60'
70'
80'
B
11'
34'
40'6"
11'6"
37'6"
47'6"
12'5"
42'5"
51'10"
C
13'
13'6"
14'7"
MAIN AUGER
PART NUMBER
100-0-1573
100-0-1574
100-0-1575
100-0-1570
100-0-1571
100-0-1572
100-0-1576
100-0-1516
100-0-1517
100-0-1518*
100-0-1514
100-0-1515
100-0-1579*
1405 8" X 60
1405 10" X 60
1405 10" X 70
1410 8" X 60
1410 10" X 60
1410 10" X 70
1410 10" X 80
1410 13" X 60 w/Hydraulic Drive
1410 13" X 70 w/Hydraulic Drive
1410 13" X 80 w/Hydraulic Drive
1410 13" X 60 w/Mechanical Drive
1410 13" X 70 w/Mechanical Drive
1410 13" X 80 w/Mechanical Drive
WEIGHT
2925#
3545#
4215#
2990#
3720#
4290#
4960#
3838#
4641#
5341#
4013#
4816#
5516#
DESCRIPTION
* 13" X 80 Augers have rigid overhead trussing & 6" lift cylinder.
HOPPER DRIVE OPTION 8" & 10" (MUST CHOOSE ONE)
PART NUMBER
DESCRIPTION
WEIGHT
100-1-0659
100-1-0670
Hydraulic
Mechanical
33#
168#
1400 ACCESSORIES: HOPPERS & FLEX SPOUTS
PART NUMBER
DESCRIPTION
WEIGHT
100-2-0668
100-2-0670
3' Bucket Type Flex Spout 7-8" x 44"
3' Bucket Type Flex Spout 10" x 44"
10#
15#
1400 ACCESSORIES: TIRES
PART NUMBER
DESCRIPTION
WEIGHT
905-09070
905-09114
905-09115
(1) 9.5L X 15" New Implement Tire
(1) New L78 x 15" Auto Tire
(1) Used Auto Tire
40#
35#
30#
1400 SERIES POWER WHEEL OPTION
PART NUMBER
DESCRIPTION
WEIGHT
100-1-0780
100-1-0781
100-1-0782
100-1-0783
10" Single Power Wheel
10" Double Power Wheel
13" Single Power Wheel
13" Double Power Wheel
140#
140#
209#
209#
The hydraulic valve is mounted to incline tube for easy swing direction change. Choose between one or two wheel drive system. Includes 1/2" hydraulic hose, 5 to 1 chain drive reduction for smooth start/stop operation, large drive wheels for super traction and floatation, adjustable drive wheel height for smooth operation on uneven ground.
1400 SERIES FLOW CONTROL VALVE FOR HOPPER HYDRAULICS OPTION
PART NUMBER
DESCRIPTION
WEIGHT
100-1-0648
100-1-0649
8"
10" & 13"
21#
23#
1400 SERIES CORN SCREEN OPTION
PART NUMBER
DESCRIPTION
WEIGHT
100-2-2734
100-2-2726
8"
10"
204#
323#
NOTE: It is not recommended to put screen on main auger tube because of possible weakening of tube structure.
