Our
Price
$289.00
#965-0697-03

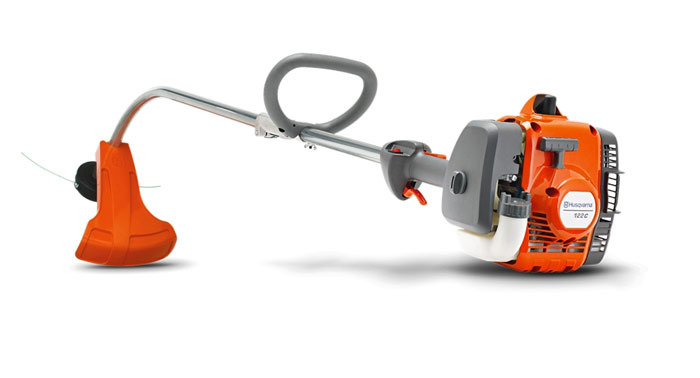

Lightweight trimmer that is perfect for landowners and semi-professionals looking for the quality of Husqvarna's E-Tech engine and the ergonomic features unique to a straight shaft. Easy starting with air purge. Strong, braided wire cable drive and durable gear box that increases reliability. Comes with easy loading T35 bump trimmer head.
Specifications
Air Purge
Auto Return
Smart Start
Three Piece
Cylinder displacement 24.5cc
Power output 1.01hp
Maximum power speed 9000rpm
Maximum recommended engine speed 11700rpm
Carburetor Hualong
Fuel tank volume 16.91 fl oz
Fuel consumption 603g/kWh
Idling Speed 2700 rpm
Spark Plug Champion RCJ7Y,NGK BPMR7A
Electrode Gap 0.02
RPM limiter Yes
Torque, max. 1.2Nm/6000rpm
Clutch Engagement speed 3800rpm
Lubricant type Husqvarna or equiv. at 50:1
Air Filter Type Foam
Maximum rpm output shaft 8014 rpm
Output shaft thread M10x1.25V
Lubricant type (bevel gear) Mineral grease
Engine Family 9HVXS.0254EQ
Basic Model H323
Engine Family 9HVXS.0254EQ
Basic Model H323
Exhaust emissions (CO average) 333g/kWh
Gear ratio 1:1.46
Drive gear angle 30°
OEM Trimmer head T35 M10
Weight (excl. cutting equipment) 9.04lbs
Tube length 58.39inch
Tube diameter 0.94
Air Purge
Removes air from carburetor and fuel system for easy starting.
Auto Return
Stop switch automatically resets to the ON position for easier starting.
Smart Start
The engine and starter have been designed so the machine starts quickly with minimum effort.
Three-piece crankshaft
Forged three-piece crankshaft for minimum durability for the toughest applications.
