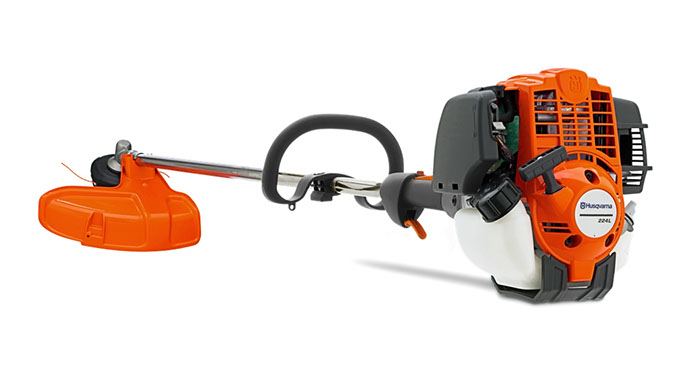

This lightweight trimmer is perfect for the homeowner that needs the ergonomic benefits of a straight shaft trimmer. The 4-stroke engine runs on pure gasoline and gets quick, easy starts with Smart Start® and air pure systems. U.S.A.
Specifications
Air Purge
No fuel mixing
Smart Start
Cylinder displacement 25cc
Power output 1.07hp
Maximum power speed 7000rpm
Maximum recommended engine speed 12000rpm
Carburetor Walbro
Fuel tank volume 18.6 fl oz
Fuel consumption 510g/kWh
Idling speed 3100rpm
Spark plug NGK CMR5H
Electrode Gap 0"
RPM limiter Yes
Air filter type Felt HD
Maximum rpm output shaft 8220rpm
Output shaft thread M10x1.25V
Lubricant type (bevel gear) Mineral grease
Gear ratio 1:1.46
Drive gear angle 30°
OEM Trimmer head T35 M10
Weight (excl. cutting equipment) 11.24lbs
Tube length 58.4inch
Tube diameter 0.9"
Air Purge
Removes air from carburetor and fuel system for easy starting.
No fuel mixing
No need for mixing gas with oil when refueling. 4-stroke engine runs on pure gasoline.
Smart Start
The engine and starter have been designed so the machine starts quickly with minimum effort.
