Engine Specifications

Cylinder displacement                                                    59cm

Power output                                                                  2.9kw

Idling speed                                                                    2700rpm

Maximum power speed                                                  9000rpm

Cylinder bore                                                                 47mm

Cylinder stroke                                                               34mm

Ignition system                                                               SEM AM50

Ignition module air gap                                                  0.3mm

Spark plug                                                                      NGK BPMR7A,Champion RCJ7Y

Electrode gap                                                                 0.5mm

Carburetor model name                                                 HDA174

Fuel tank volume                                                            0.68lit

Oil tank volume                                                              0.38lit

Oil pump type                                                                 Adjustable flow

Oil pump capacity                                                          5-15ml/min

Cutting equipment

Chain pitch                                                                     325"/3/8"

Recommended bar length, min-max                              33-50cm

Chain speed at max power                                            21.4m/s

Bar mount                                                                      Small

Emission,vibration & noise data

Equivalent vibration level (ahv, eq) front/rear handle     3.9/4.2 m/s2

Sound pressure level at operators ear                           101dB(A)

Sound power level, guaranteed (LWA)                          114dB(A)

Overall dimensions

Weight (excl. cutting equipment)                                    5.5kg

Adjustable oil pump

Adjustable oil pump makes it easy to set the chain lubrication according to your needs.

Air Injection

Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.

Ergonomic grip

Angled front handle for better grip and natural working postion.

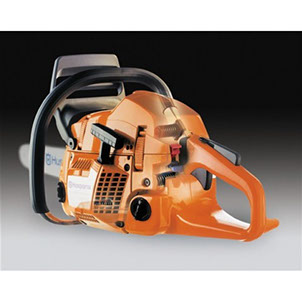

Low Vibe

Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.

Magnesium crankcase

Sturdily built crankcase withstands high RPM's and tough professional use, ensuring a long service life.

Quick-release air filter

Facilitates cleaning and replacement of the air filter.

Side-mounted chain tensioner

Side-mounted chain tensioner makes chain adjustment quick and easy.
