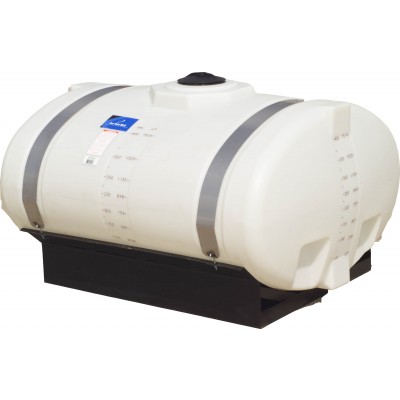

Elliptical Tanks can be selected for stationary or transportable (non DOT approved) applications both indoors and outdoors. The elliptical tank lowers the center of gravity to enhance stability and visibility. The tanks feature a standard 2-1/2” collection sump on the bottom for full drain out. An 8-1/2” deep sump option is available on five sizes. Sump is located directly under the lid on standard tanks, but a center sump option is available on tanks from 500-1250 gallons. These tanks require the bottom to be fully supported with a cradle for use. The tanks are manufactured from medium-density polyethylene with U.V. stabilizers and are designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

    Elliptical Tanks are available with the following sump options:

    – 2.5″ sump (standard)

    – 6″ deep boxed sump (HED1600-78 only)

    – 8.5″ sloped deep sump

    Deep sump part numbers begin with “HED”.

* indicates baffle option available

† indicates baffle system is standard

+ indicates available in a flat-bottom style
