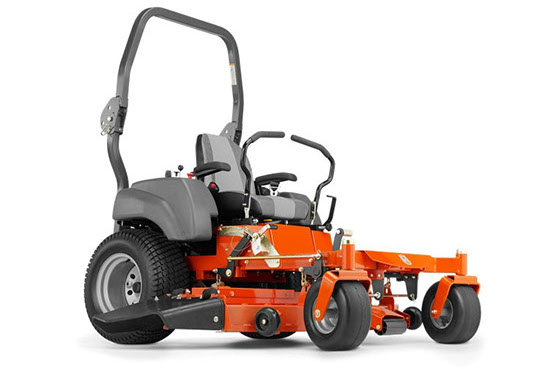

The new M-ZT series zero-turn mower from Husqvarna takes performance, productivity, and comfort to a whole new entry-commercial level. The intuitive operator interface, heavy-duty steel frame and commercial rated hydraulic system create the ultimate mowing experience. With a rugged fabricated steel deck that is mulch and collection capable, the M-ZT is practical for all of your property maintenance needs. The high back seat with armrests and adjustable ergonomic steering levers will provide a comfortable ride time after time.
Specifications
Adjustable
Briggs
Comfortable
Commercial
Pedal
Roll Over
9 Bushel
Engine Manufacturer Briggs
Engine name Endurance Commercial
Power 30hp
Cylinder displacement 810cc
Cylinder 2
Engine Cooling Air
Air Filter type Standard
Fuel Type Gasoline
Fuel tank volume (with reserve) 5 gal.
Fuel tank location Side(single)
Engine lubrication type Full pressure
Oil capacity 64 fl oz
Oil filter Yes
Transmission type Hydrostatic
Transmission manufacturer Hydro-Gear
Transmission model ZT 3400
Pump displacement 12cc
Fan-cooled pumps Yes
Speed forward,min-max 0-10mph
Speed reverse,min-max 0-5mph
Cutting width 61 inch
Cutting deck type Fabricated flat
Cutting methods Collect/Mulch/Side ejection
Cutting deck material Steel
Deck thickness 11 gauge
Cutting height,min-max(approximate) 1.5-4.5"
Cutting height steps 12
Blade engagement Electric clutch
Clutch rating 200ft lb.
Blades 3
Blade-tip speed 18500fpm
Anti-scalp wheels 2
Nose Roller Yes
Deck lifting system Manuel,foot assisted
Powder-coated cutting deck Yes
Spindle/mandrel type Cast iron
Greasable madrels Yes
ROPS Yes
Seat material Vinyl
Seat spring Yes
Seatback height High
Armrests Deluxe
Hour meter Digital
Cup holder Yes
Tire size,front 13X6.5-6"
Tire size,rear 2 3x10.5-12"
Wheelbase 49"
Base machine,length 75.5 inch
Base machine, width (chute down) 76 inch
Base machine width(chute up) 62.3 inch
Base machine height (ROPS down) 45.5 inch
Base machine height (ROPS up) 72 inch
Weight 790lbs
Productivity 4.9acres/hr
Homeowner Warranty 3 Year Limited
Commercial Warranty 1 Year Limited
Adjustable Steering Levers
Steering levers are adjustable for different size operators-ergonomically angled inward for more comfort-and dampeners can be adjusted to suit your particular style.
Briggs & Stratton Engine
Briggs & Stratton engines offer durability, dependable starting and the power you need to get the job done.
Comfortable Steering
Dual levers with foam-padded
hand grips and viscous dampers that reduce vibration, create a comfortable operator experience.
Commercial Drive System
Hydro-Gear's ZT3400 series commercial transmissions are fully serviceable and offer higher ground speeds with smooth performance.
Pedal-assisted cutting deck lift
Ergonomically designed deck lifting system offers precise cutting height adjustment. Easy and quick adjustment from the operator's seat.
Roll Over Protection System
The practical foldable ROPS protects the user and can be lowered in areas with low-hanging branches.
9 Bushel Collection System
Increase productivity and versatility with a 9 bushel triple bag collection system. Unique design removes or installs in a matter of minutes.
