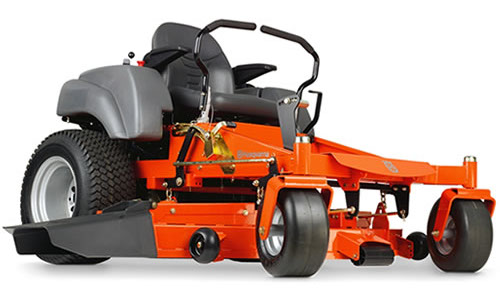

The MZ series zero-turn mower from Husqvarna takes performance, productivity, and comfort to a whole new level. The intuitive operator interface, heavy-duty steel frame and comercial rated hydraulic system ceate the ultimate mowing experience. With a rugged fabricated steel deck that is mulch and collection capable, the MZ is practical for all of your property maintenance
needs. The high back seat with armrests and adjustable ergonomic steering levers will provide a comfortable ride time after time.
Specifications
Adjustable Steering
Comfortable Steering
Pedal-Assisted
9 Bushel Collection
Engine Manufacturer Kohler
Engine name Courage Pro V-Twin
Power 25hp
Cylinder displacement 725cc
Cylinder 2
Engine Cooling Air
Air Filter type Standard
Fuel Type Gasoline
Fuel tank volume (with reserve) 5 gal.
Fuel tank location Side(single)
Engine lubrication type Full pressure
Oil capacity 64 fl oz
Oil filter Yes
Transmission type Hydrostatic
Transmission manufacturer Hydro-Gear
Transmission model ZT 3100
Pump displacement 12cc
Fan-cooled pumps Yes
Speed forward,min-max 0-8.5mph
Speed reverse,min-max 0-5mph
Cutting width 52 inch
Cutting deck type Fabricated flat
Cutting methods Collect/Mulch/Side ejection
Cutting deck material Steel
Deck thickness 11 gauge
Cutting height,min-max(approximate) 1.5-4.5"
Cutting height steps 12
Blade engagement Electric clutch
Clutch rating 200ft lb.
Blades 3
Blade-tip speed 19000fpm
Anti-scalp wheels 2
Nose Roller Yes
Deck lifting system Manuel,foot assisted
Powder-coated cutting deck Yes
Spindle/mandrel type Aluminum,regular
Greasable madrels Yes
Seat material Vinyl
Seat spring Yes
Seatback height High
Armrests Yes
Hour meter Digital
Cup holder Yes
Tire size,front 13X6.5-6"
Tire size,rear 22x10-10"
Wheelbase 49"
Base machine,length 75.5 inch
Base machine, width (chute down) 67 inch
Base machine width(chute up) 54 inch
Base machine height 42 inch
Weight 740lbs
Productivity 3.5acres/hr
Homeowner Warranty 3 Year Limited
Commercial Warranty 1 Year Limited
Adjustable Steering Levers
Steering levers are adjustable for different size operators-ergonomically angled inward for more comfort-and dampeners can be adjusted to suit your particular style.
Comfortable Steering
Dual levers with foam-padded hand grips
and viscous dampers that reduce vibration, create a comfortable operator experience.
Pedal-Assisted Cutting Deck Lift
Ergonomically designed deck lifting system offers precise cutting height adjustment. Easy and quick adjustment from the operator's seat.
9 Bushel Collection System
Increase productivity and versatility with a 9 bushel triple bag collection system. Unique design removes or installs in a matter of minutes.
