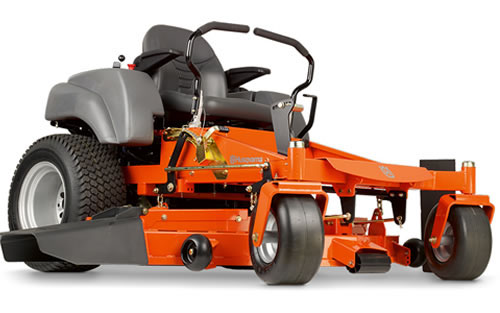

The MZ series zero-turn mower from Husqvarna takes performance, productivity, and comfort to a whole new level. The intuitive operator interface, heavy-duty steel frame and commercial rated hydraulic system create the ultimate mowing experience. With a rugged fabricated steel deck that is mulch and collection capable, the MZ is practical for all of your property maintenance needs. The high back seat with armrests and adjustable ergonomic steering levers will provide a comfortable ride time after time.
Specifications
Adjustable Steering
Briggs & Stratton
Comfortable Steer
Pedal-Assisted
Engine manufacturer Briggs&Stratton
Engine name Endurance Series
Power 28hp
Cylinder displacement 810cc
Cylinders 2
Engine cooling Air
Generator 16A
Air Filter type Standard
Fuel type Gasoline
Fuel tank volume(with reserve) 5 gal.
Fuel tank location Side(Single)
Engine lubrication type Full pressure
Oil capacity 64 fl oz
Oil filter Yes
Transmission type Hydrostatic
Transmission manufaturer Hydro-Gear
Transmission model ZT3100
Pump displacement 12cc
Fan-cooled pumps Yes
Speed forward, min-max 0-8.5mph
Speed reverse, min-max 0-5mph
Cutting width 61 inch
Cutting deck type Fabricated flat
Cutting methods Collect/Mulch/Side Ejection
Cutting deck material Steel
Deck thickness 11 guage
Cutting height,min-max(approx.) 1.5-4.5 inch
Cutting height steps 12
Blade engagement Electric clutch
Clutch rating 200ft.lb
Blades 3
Blade-tip speed 18500fpm
Anti-scalp wheels 2
Nose roller Yes
Deck lifting system Manual,foot assisted
Powder-coated cutting deck Yes
Spindle/mandrel type Aluminum,regular
Greasable mandrels Yes
Seat material Vinyl
Seat spring Yes
Seat back height High
Armrests Yes
Hour meter Digital
Cup holder Yes
Tire size,front 13X6.5-6"
Tire size,rear 22X10-10"
Wheelbase 49"
Base machine, length 75.5 inch
Base machine,width(chute down) 76 inch
Base machine,width (chute up) 62.3 inch
Base machine,height 42 inch
Weight 770lbs
Productivity 4.2acres/hr
Homeowner Warranty 3 Year Limited
Commercial Warranty 1 Year Limited

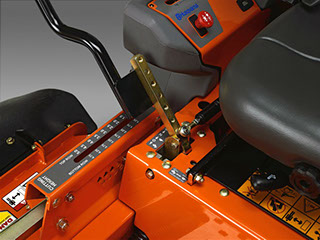

Adjustable Steering Levers
Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort - and dampeners can be adjusted to suit your particular style.
Briggs & Stratton Engine
Briggs & Stratton engines offer durability, dependable starting and the power you need to get the job done.
Comfortable Steering
Dual levers with foam-padded hand grips and viscous dampers that reduce vibration, create a comfortable operator experience.
Pedal-Assisted Cutting Deck Lift
Ergonomically designed deck lifting system offers precise cutting height adjustment. Easy and quick adjustment from the operator's seat.
