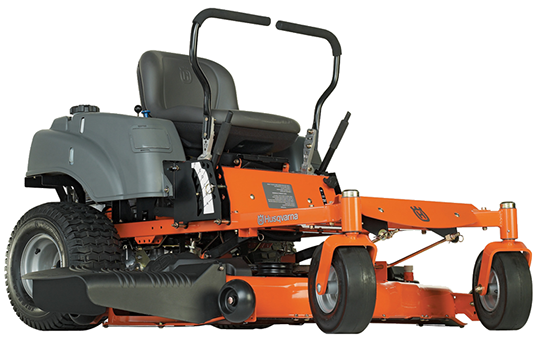

For maneuverability, efficiency and convenience in a homeowner zero-turn mower package, the residential series really delivers. True zero-turn mower performance with twin, maintenance-free integrated transmissions, heavy-duty front casters and a rugged tube steel frame. High performance Air Induction cutting decks allow side ejection or optional mulch and collection capability. Convenient control placement, foam padded steering levers and an adjustable seat make these units easy and enjoyable to operate.
Specifications
Air Induction
9 Bushel Collection
Maintenance-Free
Water Hose Connection
Engine manufacturer Kohler
Engine name Courage
Power 24hp
Cylinder displacement 725cc
Cylinders 2
Engine cooling Air
Generator 16A
Air Filter type Standard
Fuel type Gasoline
Fuel tank volume(with reserve) 3.5 gal.
Fuel tank location Side(Single)
Engine lubrication type Full pressure
Oil capacity 64 fl oz
Oil filter Yes
Transmission type Hydrostatic
Transmission manufacturer Hydro-Gear
Transmission model EZT
Pump displacement 10cc
Fan-cooled pumps Yes
Speed forward,min-max 0-6.5mph
Speed reverse,min-max 0-3.5mph
Cutting width 54"
Cutting deck type Stamped
Cutting methods Collect/Mulch/Side
Cutting deck material Steel
Deck thickness 12 guage
Cutting height,min-max(approx.) 1.5-4"
Cutting height steps 6
Blade engagement Electric clutch
Clutch rating 90ft.lb
Blades 3
Blade-tip speed 18500fpm
Anti-scalp wheels 4
Deck lifting system Manual,hand
Powder-coated cutting deck Yes
Spindle/mandrel type Alum,vented
Greasable mandrels Yes
Deck Wash Port Yes
Seat material Vinyl
Seatspring Yes
Seat back height Medium
Fuel level window Yes
Hour meter Digital
Cup holder Yes
Tire size,front 11X6.5"
Tire size,rear 18X9.5-8"
Wheelbase 43.8"
Base machine,length 75 "
Base machine,width (chute down) 67.5 "
Base machine,width (chute up) 57 "
Base machine,height 40"
Weight 640lbs
Productivity 2.8acres/hr
Homeowner Warranty 3 Year limited
Commercial Warranty N/A
Air Induction Mowing Technology
Air is drawn from the top and bottom of the deck, improving grass lift and delivering a superior cut.
9 Bushel Collection System
Increase productivity and versatility with a 9 bushel triple bag collection system. Unique design removes or installs in a matter of minutes.
Maintenance-Free Transmission
Worry free performance with maintenance free, integrated zero-turn transmissions.
Water Hose Connection
Facilitates cleaning of the cutting deck. Attach the hose, turn on the water and start the engine and you will get a cleaner deck.
For optimum results, clean the mower directly after use.
